S.R. 0449, Section A02

View fullsize

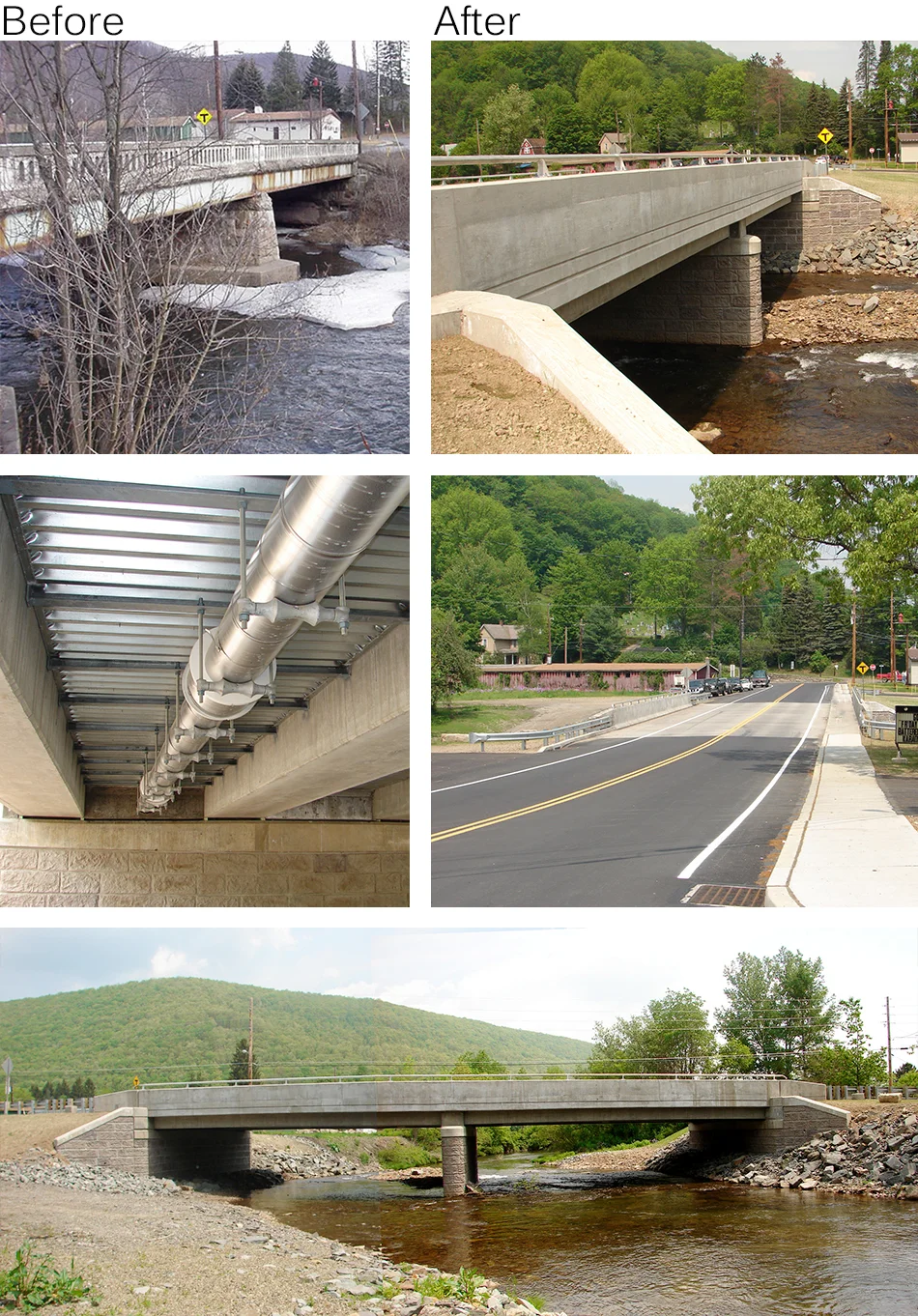

After

View fullsize

Before

View fullsize

Before

View fullsize

after

View fullsize

after

View fullsize

after



Cost: $1.04 million
County: Potter County
Client: PennDOT District 2-0
Contact: Mr. Craig Sattesahn, P.E. (814-765-0678)
Project Letting: January 2015

This project is the replacement of an existing bridge carrying S.R. 0449 (North Brookland Road) over Pine Creek. The replacement structure is a precast concrete box culvert (18’ normal clear span). A temporary roadway and stream crossing are included in the project to maintain traffic during construction. The project also includes 587 LF of roadway reconstruction.

S.R. 0006 Section A02

View fullsize

View fullsize

Cost: $1.48 million
Contact: Mr. Mark Kucherer, P.E. (814-765-0440)
Client: Engineering District 2-0
Project Letting - 2007

US 6/Allegheny River Bridge Replacement  - This project included a single span (63’ c/c brgs.) prestressed concrete spread box beam bridge with integral abutments. The abutments and bridge barrier included a brick architectural surface treatment to complement an adjacent historic building. The project included 280’ of approach roadway reconstruction. The project also included minor intersection and roadway improvements on a local street network in Coudersport to accommodate detoured traffic during construction of the bridge. The detour was comprised partially of a pair of one-way roads in a residential community and included two temporary traffic signals.



S.R. 1020 Section A01

View fullsize

View fullsize

Cost: $1.31 million
Client: PennDOT Engineering District 2-0
Contact: Mr. George Uhl (814-765-0480)

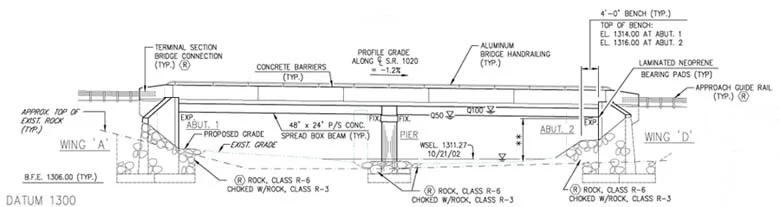

Bridge Replacement - Potter County - This project includes a two span (98'-6" c/c brgs.) precast concrete spread box beam bridge over the West Branch of Pine Creek. The project also includes 535' of approach roadway reconstruction.
