TR-466 (East Spring Road) Over Carr Run

Before

After

$416,939
Client: PennDOT District 1-0
Contact: Tom McClelland, P.E. (814-678-7081)
Project Letting: December 2019

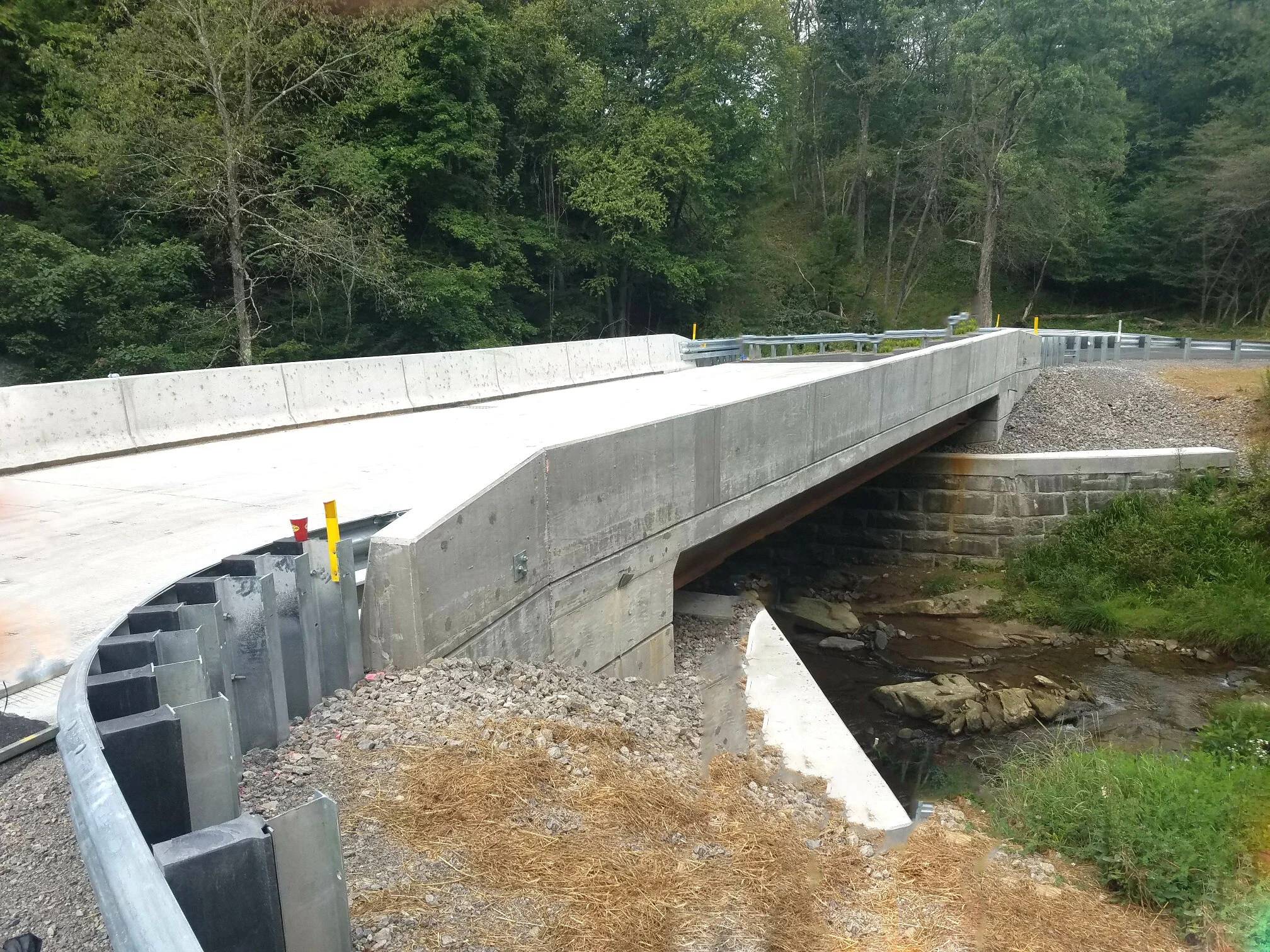

Bridge Replacement - Crawford County - Spring Township - The project involved the replacement of an existing single span concrete encased steel I-beam bridge carrying T-466 (East Spring Road) over Carr Run with a single span prestressed concrete spread box beam bridge (44-0” span). The bridge foundations consisted of integral-type abutments supported by steel piles driven to refusal. The project also included 272’ of approach roadway work.

T-469

Before

Cost: $576,422
Client: PennDOT District 3-0
Contact: Tim Bolton, P.E. (570-368-4328)
Project Letting: September 2019

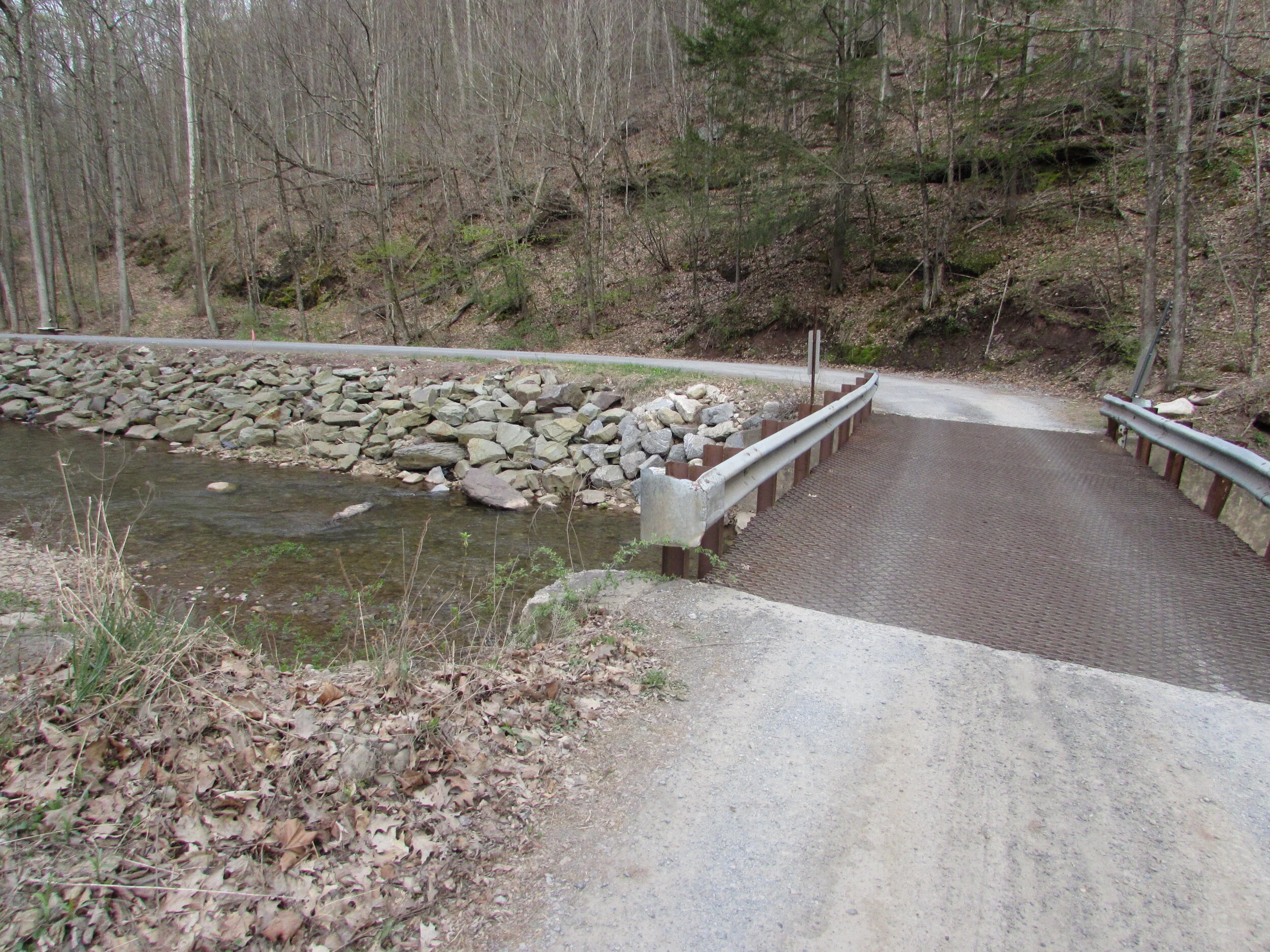

Bridge Replacement - Snyder County - Spring Township - The project involved the replacement of an existing single span steel I-beam bridge carrying T-469 (Sawmill Road) over Swift Run with a 22’-0” x 8’-0” precast reinforced concrete box culvert and precast reinforced concrete end sections. The project also included 525’ of approach roadway work.

S.R. 1054 Section F10/H10

Cost: $1.275 Mil.
Client: PennDOT Engineering District 12-0
Project Letting - 2009

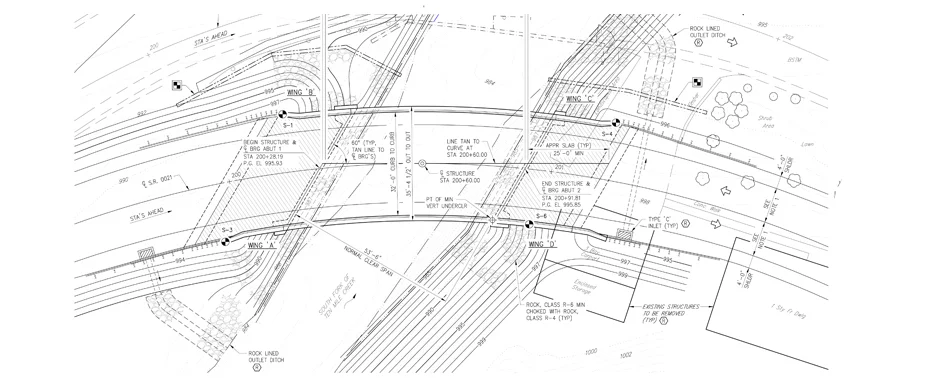

This project consisted of replacing two structures; the first a box culvert (14’ span) over an Un-named Tributary to Back Creek and the second, a bridge (45.5’ span) over Back Creek. The project included a combined 700’ of approach roadway reconstruction. SPK developed the conceptual plans and specifications for a Department Design-Build project. SPK also provided design review and construction consultation on the project.
