S.R. 0136 Section 137

View fullsize

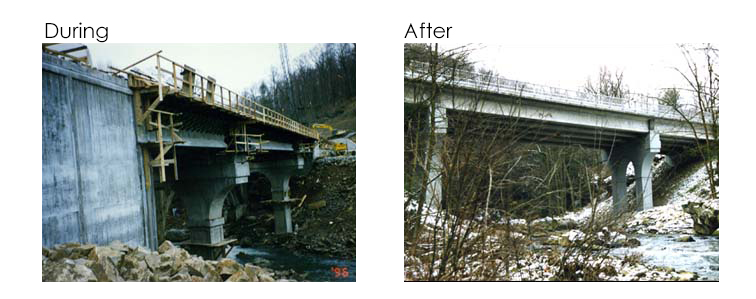

During Construction

View fullsize

Project Length: 2,076' (0.39 Miles)
Client: PennDOT Engineering District 12-0
Contact: Mr. Bill Oshnack (724-439-7321)

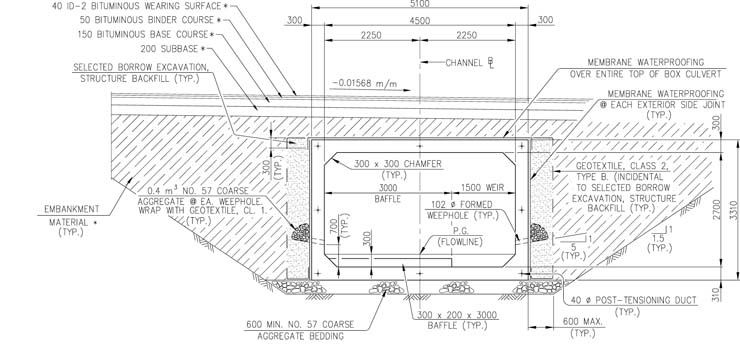

The project consisted of widening S.R. 0136, Section 137 from an existing two lane roadway to three lanes from Davis Market to Greengate Road. This project also included the replacement of an existing metal plate pipe arch which carries S.R. 0136 over the Tributary of Jack's Run. The replacement structure is a precast concrete box culvert.

S.R. 1031 Section F00

View fullsize

View fullsize

View fullsize

Cost: $1.11 million
Client: PennDOT Engineering District 12-0
Contact: Mr. Jerry Bendo (Retired)

Bridge Replacement - This project included the replacement of a single span thru-truss with a two span (41.696 m overall span) prestressed concrete adjacent box beam bridge over Jacobs Creek. The project also included 0.245 km of approach roadway reconstruction.

S.R. 0381 Section C10

View fullsize

 Cost: $2.7 Million
Client: PennDOT Engineering District 12-0

Meadow Run Bridge Replacement and Roadway Improvements - This project included a Three-Span Continuous Composite Prestressed Concrete Bridge. It also included 1,000 feet of roadway approach and a connection to existing S.R. 2019. The structure was constructed in half-widths so as to maintain traffic at all times.
