S.R. 0079 Section A06

View fullsize

Cost: $26.3 million
Client: PennDOT Engineering District 1-0
Contact: Rod Fasenmyer - 814-678-7369

Meadville Interchange Reconstruction Project - Originally a teaming effort with the District 1-0 Design Unit performing the roadway design with the SPK team performing all the structure design activities, evolved into a roadway design-build contract that was prepared by SPK. The design-build package included the final design plans for the mainline bridges (two (2) - 223’ single-span steel plate girder bridges), extension and/or repair of three (3) concrete box culverts, eight (8) overhead sign structures, and the approved Design Field View plans for the mainline and ramp reconstruction. The project also included water quality features in the in-fields that were coordinated and designed by the Center for Economic and Environmental Development (CEED) in cooperation with Allegheny College. The project was closely coordinated with the District who performed the Line & Grade Studies and was delivered in less than twelve (12) months.



S.R. 3005, Section B01

Project Cost: $420,000
Client: PennDOT District 1-0
Contact: Mr. Mark Nicholson (814-678-7057)
Project Letting - March 2014

Crawford County (ECMS #495) - Bridge Replacement - This project consisted of a single span prestressed concrete spread box beam bridge (44.42’ span) on integral abutments carrying S.R. 3005 over a Tributary of the Shenango River. The project also included 304’ of approach roadway reconstruction.

S.R. 1025 Section B00

View fullsize

Cost: $1.87 million
Client: PennDOT Engineering District 1-0
Contact: Ms. Jeanette Uhl, P.E. 814-678-7084

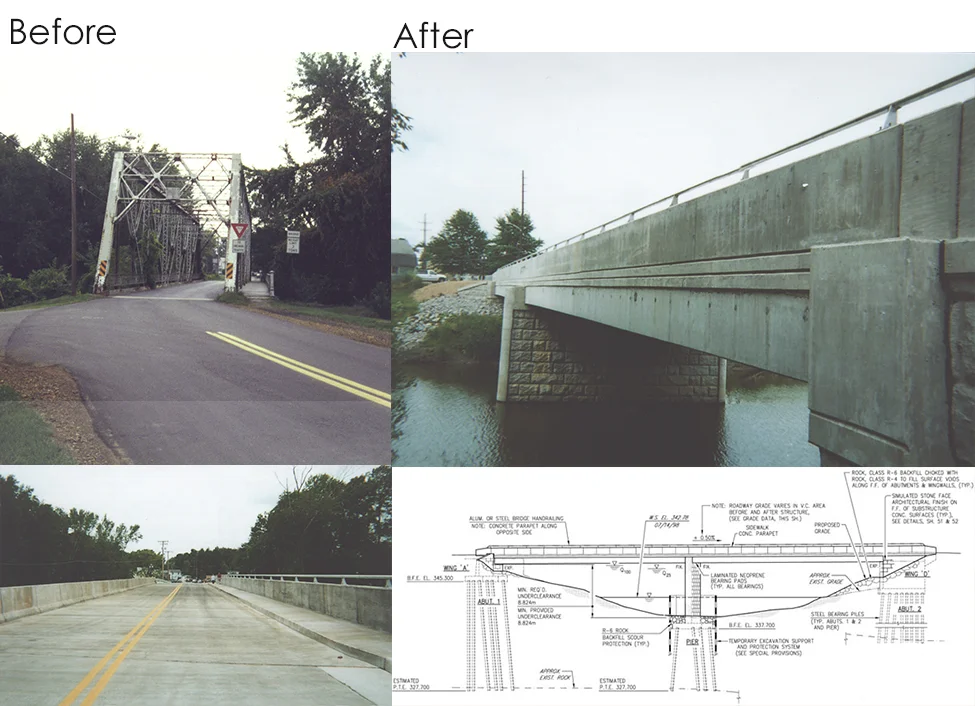

Grant Street Bridge Replacement - This project included the replacement of a single
span thru-truss with a two span (63.17 m overall span) prestressed concrete adjacent box
beam bridge over French Creek. The project also included 0.259 km of approach roadway reconstruction.
